Research Points To Ingenious Machines Behind The Construction Of Egyptian Pyramids

Human creativity has shaped countless wonders, but few, like Egypt’s pyramids, capture our awe. More than royal tombs, these structures showcase how far a resourceful civilization could stretch its engineering skills.

Over the years, experts have floated ideas, from giant earthen ramps to legions of workers hauling sledges across sand. Still, new research suggests that water, alongside surprisingly advanced machinery, played a starring role.

In a paper for PLOS ONE, Xavier Landreau and his team at France’s CEA Paleotechnic Institute take a fresh look at the 4,500-year-old Step Pyramid of Djoser at Saqqara. They argue that the ancient builders tapped into nearby canals instead of relying solely on ramps and ropes, using a custom hydraulic lift to raise massive limestone blocks.

Their investigation began with a curious feature near the pyramid: the stony enclosure known as Gisr el-Mudir. It stood out because it didn’t fit any known ceremonial function and had been mostly ignored. Landreau’s group thinks it served as a check dam, capturing seasonal floodwaters and guiding them into the pyramid’s worksite. Trapping silt would have kept the water clean enough for construction.

They spotted a series of long, narrow pits closer to the pyramid. At first glance, these looked like storage trenches, but the layers of sediment told a different story—one of carefully managed water flow. The researchers believe each pit acted like a settling tank, allowing heavier particles to drop out before the water moved on.

When it reached the lift mechanism, the water was clear enough to circulate without clogging the channels. This blend of hydraulic engineering and practical know-how hints at a level of sophistication that rivals some modern textbooks, reminding us that innovation can flourish wherever bright minds meet real-world challenges.

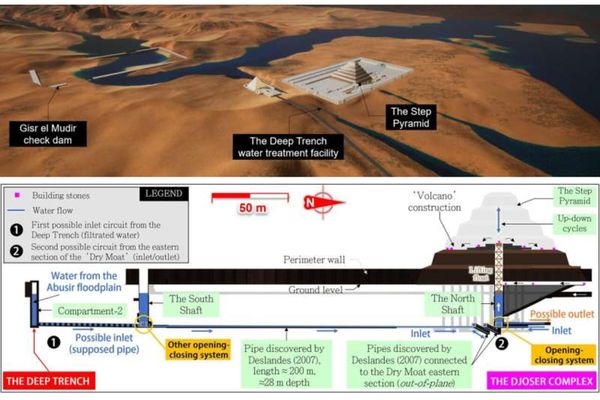

A map highlights the watercourse leading to the Step Pyramid; below, a diagram outlines the reconstructed building process.

Inside Djoser’s pyramid lie two large shafts that descend near the center. Past surveys noted them but tagged them as burial features, partly because no one imagined they played an active role during construction.

Landreau’s team re-examined their geometry and found they lined up with internal corridors that could serve as guide rails. The theory was that blocks of stone sat on buoyant wooden floats.

When water flowed into a shaft, pressure beneath the float pushed it, along with the block on top, skyward. Workers at higher tiers could then slide the block onto the growing structure.

Reversing the process would bring the empty float back down for another load. Because water pressure does the heavy lifting, laborers could focus on positioning rather than brute force.

In their article, the researchers write, “Ancient Egyptians are famous for their mastery of canals for irrigation and barges for transport. This study shows they may also have seen water as a vertical engine.”

That single observation reframes a long-running debate on pyramid logistics: if a lift could handle even part of the workload, the manpower and timber required for massive ramps drops sharply.

PLOS ONE

Although the layout of shafts and channels fits the hydraulic model, the authors are cautious. They haven’t yet proven how water entered the shafts, nor how much flow the surrounding desert could supply outside the peak flood season.

Sophisticated computer modeling and limited excavation around Gisr el-Mudir could confirm the intake pathways. Landreau’s colleagues concede that a lift wouldn’t eliminate other tools.

Ramps, sledges, and levers almost certainly played supporting roles, especially for the pyramid’s lower tiers, before the elevator’s reach became useful. Still, the researchers contend the water-powered system “would have supported the building process whenever sufficient water was available.”

Engineering Insights

Dr. Zahi Hawass, a prominent Egyptologist and former Minister of Antiquities in Egypt, emphasizes that the construction of the pyramids reflects an incredible understanding of engineering principles. He notes that the use of hydraulic systems could have facilitated the movement of heavy stones, a method that might revolutionize our comprehension of ancient engineering.

Hawass states, “The Egyptians had a sophisticated understanding of their environment, and water management would have been essential in this monumental endeavor.” This perspective not only sheds light on technological advancements in ancient Egypt but also encourages further exploration into how such methods could inspire modern engineering solutions.

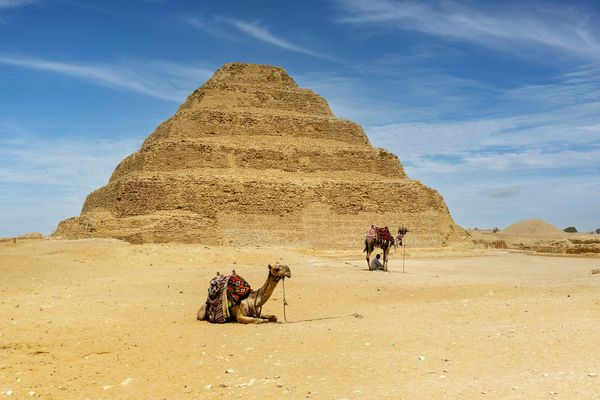

Historians have been baffled by how the Pyramid of Djoser, known as the Step Pyramid, was built for centuries.

If the Step Pyramid used hydraulic assistance, other early pyramids might have, too. The concept opens a new research track: finding telltale signs of dams, sluices, or shaft-like elevators near pyramid cores. It also deepens our appreciation for the Egyptians’ command of their river environment.

They weren’t just diverting the Nile for crops; they may have marshaled its force to raise entire stone mountains. The authors conclude that this work has broader implications:

“This work opens a new research line for the scientific community: the use of hydraulic power to build the pyramids of Egypt.”

In other words, the ancient builders could have combined desert stone and river water in ways we’re only now starting to grasp.

iStock

Whether the hydraulic hypothesis holds up or evolves, one fact remains: the Egyptians pushed the limits of available technology, finding surprisingly elegant solutions to problems that still fascinate engineers today.

And while their pyramids continue to rise silently above the desert, the channels that fed them with life-giving water may soon speak up, rewriting a cornerstone chapter of ancient engineering history.

Experts in construction technology, like Dr. David Macaulay, author of "Building Big," suggest that innovative techniques such as using water to reduce friction could have significantly impacted the efficiency of pyramid construction. His research indicates that leveraging natural resources in engineering can lead to sustainable practices.

Dr. Macaulay advises contemporary engineers to study ancient methods, stating, “By analyzing how past civilizations solved complex problems, we can uncover sustainable solutions for modern engineering challenges.” This approach not only preserves historical knowledge but also provides a blueprint for future advancements in construction.

Understanding the Deeper Patterns

The intersection of ancient engineering and modern technology offers a rich field of study that can benefit both historians and engineers alike. By understanding how ancient civilizations like the Egyptians utilized available resources, we can foster sustainable practices in today's construction industry.

Experts like Dr. Zahi Hawass and Dr. David Macaulay encourage us to look into the past for inspiration, suggesting that the ingenuity of ancient builders can guide contemporary solutions. Embracing this historical perspective could lead to innovative practices that respect both our heritage and the environment.
